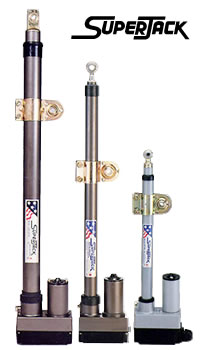

Actuator For Satellite Antenna

Anti-rust process:
Epoxy power coated steel tube and high grade plated hardware.

Excellent waterproofing:
Provide 2 seals and 3 drain holes

Optional weather protection boot and accordion:
Tube accordion and motor boot

Sensor:
Ruthenium plate contacts ensures longer sensor life.

Hermetically sealed in a clean atmosphere to eliminate ill effects of dust, corrosion or oxidation.

Advanced design allows no opportunity for sticking, binding or wearing of hinged joints.

Plastic impregnated for risk free installation and easy to replace.



Specification
MODEL NO. HEAVY REGULAR MINI
Stroke Length 18"/24"/36" 12/"/18"/24" 6"/8"/12"
Suggested Dish Size 2.4M~4.8M 1.2M~3.6M 60cm~1.5M
Static Load 3000lbs 1000lbs 500lbs
Dynamic Load 1200lbs 550lbs 300lbs
Speed(Rated Load) 5.2mm/sec 5.6mm/sec 6.2mm/sec
Resolution(Reed) 32 pulse/inch 48 pulse/inch 76 pulse/inch
Resolution(Optical) 83 pulse/inch 125 pulse/inch 203 pulse/inch
Resolution(Potentiometer) 10 turns, 10K Ohm 10 turns, 10K Ohm ----
Input Voltage 36VDC 36VDC 36VDC

Packing Information
Model No. PCs/Carton N.W./Carton G.W/Carton Means. 20FT 40FT
DARL3606+ 10 16.2kgs 17.27kgs 1.57' 6500pcs 10700pcs
DARL3608+ 10 20.58kgs 1.66' 1.66' 5800pcs 10700pcs
DARL3610+ 10 21.67kgs 1.88' 1.88' 5300pcs 10500pcs
DARL3612+ 10 23.23kgs 2.04' 2.04' 5000pcs 10000pcs
HARL3612+ 4 15.49kgs 1.29' 1.29' 3100pcs 6180pcs
HARL3618+ 4 17.95kgs 1.66' 1.66' 2600kgs 4900pcs
HARL3624+ 4 21.18kgs 1.89' 1.89' 2600pcs 4104pcs
QARL3618+ 1 7.27kgs 0.75' 0.75' 1200pcs 2400pcs
QARL3624+ 1 9.39kgs 1.11' 1.11' 1000pcs 2000pcs
QARL3636+ 1 10.42kgs 1.11' 1.11' 760pcs 1520pcs




QARL 3624 Kost 100 Euro incl

HARL Reed kost 40 Euro incl

12" optical (HAL) kost 60 Euro incl



Reken:

Voor de 24" met reed contact teller:

90° draaien met 24" reed: 24" => 61cm => 0.63 cm /°

32 pulsen /inch => 12.59 pulsen /cm

Aantal pulsen / graad = 12.59 * 0.63 => 7.39 pulsen /°

Voor de 12" met reed contact teller:

90° draaien met 12" reed: 12" => 30.48cm => 0.338 cm/°

48 pulsen /inch => 18.89 pulsen /cm

Aantal pulsen / graad =  18.89 * 0.338 => 6.38 pulsen /°

Voor de 12" met hal sensor teller:

90° draaien met 12" reed: 12" => 30.48cm => 0.338 cm/°

125 pulsen /inch => 49.2 pulsen /cm

Aantal pulsen / graad =  49.2 * 0.338 => 16.63 pulsen /°
