22W Power Amplifier for 13 cm ATV

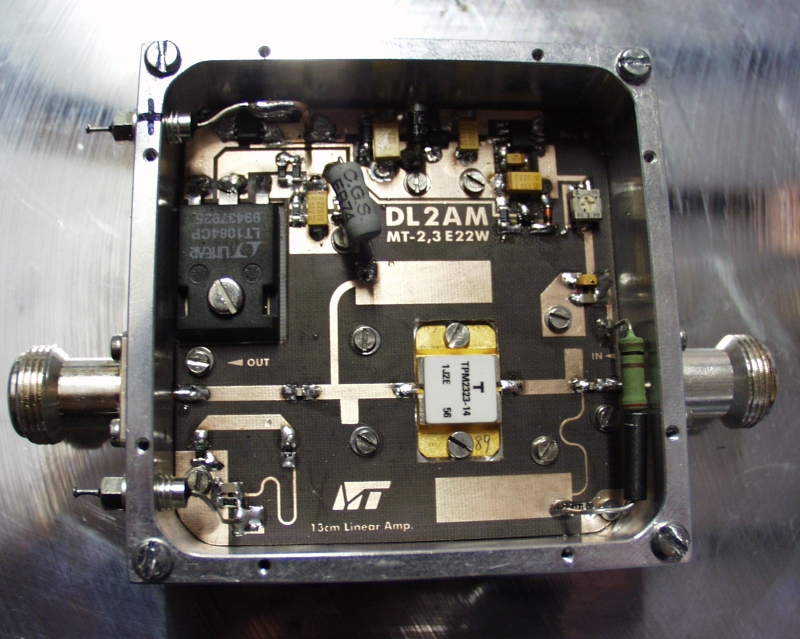

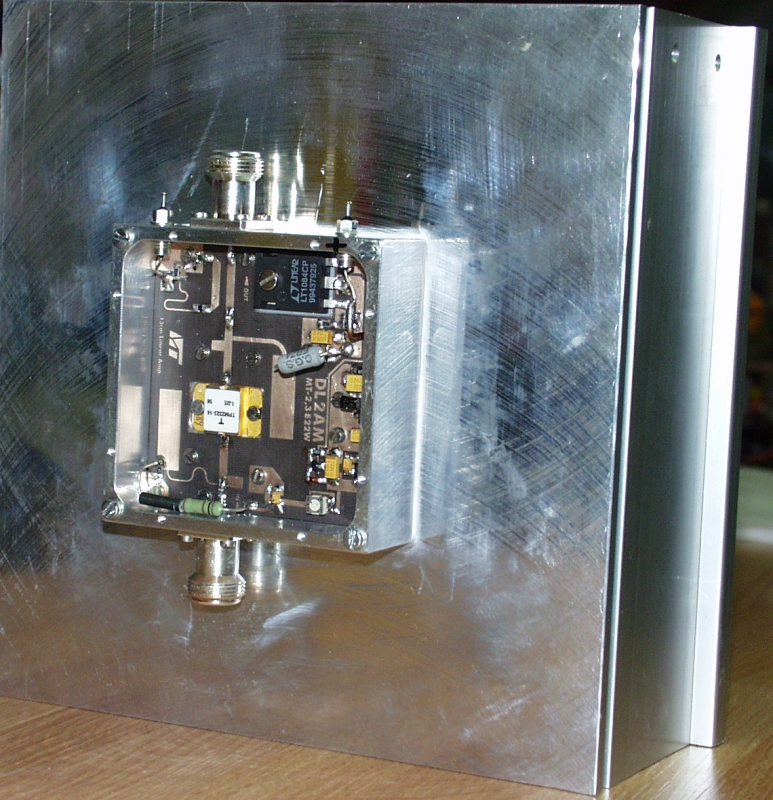

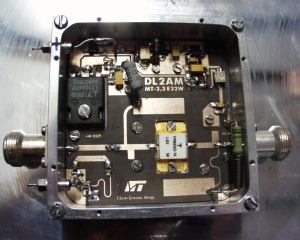

MT 2,3 - E 22 WA-400, 2,3 GHz-Linear-Power-Amplifier-Kit, one-stage-version, 20 Watt out at 400 mWatt in, max. 22 Watt out, 17,5 dB amplification, highly effective protection circuit with additional blocking circuit to eliminate high inrush currents with DC Soft Start, precisely milled solid Aluminum housing, prepared with all threads und mills, 12-15 Volt DC. I max. 4,8 Amp., built-in directional coupler with detector for monitoring the output power, with the new heavy duty Power-Gas-Fet from Toshiba, I.ds = 13 Amp. P.d = 60 Watt , Teflon board , N-connctors, tuning range 2,2 to 2,45 Ghz, housing 80 x 80 x 29 mm, published in DUBUS Issue 2/96, p.20, and ATV-Amateur Issue 1/97 Kit from DL2AM. |
 |
