Contest Table  (09/2005)

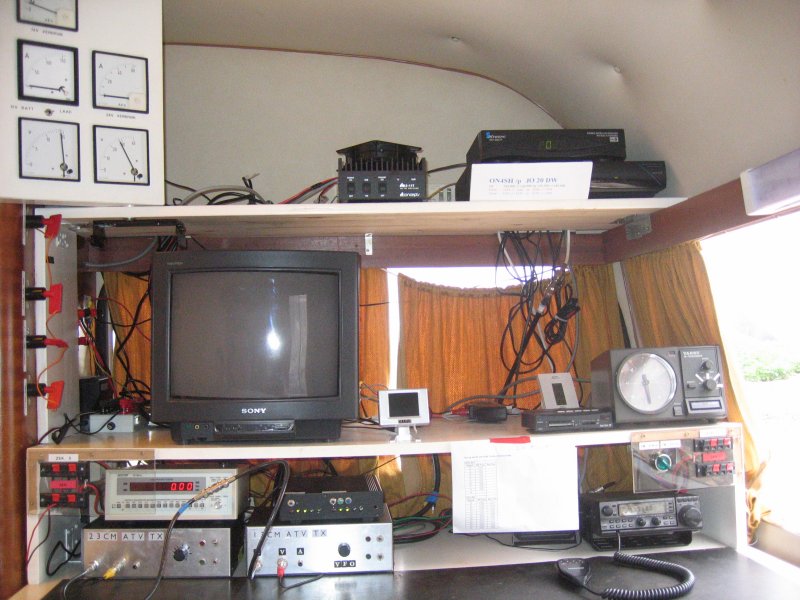

Our contest table.



ATV-RX    : Strong analog sattelite reveiver with 2 LNB input's

Sandisk :       Sandisk Photo viewer : The sending image generator.

Monitor switch : Low cost (8) 4 in -> 1 out switch: Selector for Camera, Sandisk, ATV RX, D-ATV RX to Monitor

Video divider : 1 in 4 out ampilfier to: D-ATV input, 13 cm ATV TX, 23 Cm ATV TX, Monitor switch.

23 cm TX : Ontwerp ON7IZ

13 cm TX : Ontwerp ON7IZ

Sequencer RX/TX Switch : Remote contol for coax relais, pre-amps and power amplifiers high in the antenna mast.

2M Tranceiver : Kenwood TM-255E 2m 50W all-mode transceiver.

23cm PA: 200W 8x mitsubishi modules (13.8V 70A)

Rotor: Yaesu 1000 SDX

13cm PA: 40W Pre-PA, 200W PA (28V, 30A)
