Technical Information:
Operating Frequentie: 34,3 GHz 100 Hz (Ka-Band)
Output Power: typisch 0,5 mW
Antenne profit: 30 dB (regard to isotope antenna)
Measure Angle: horizontal 5
vertikal 5
Measure Angle in driving direction



22
Min-Max Km/h: 25 - 250 km/h
Tolerance: 25 - 100 km/h: 3 km/h
100 - 250 km/h: 3% (rounded down to the next decimal)

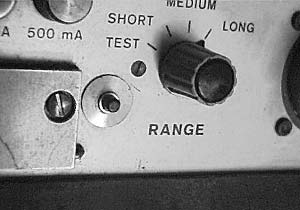

Range:
Stufe absolute Reichweite entsprechender Seitenabstand
fern ca. 40 m ca. 15 m
mittel ca. 15 m ca. 6 m
nah ca. 7 m ca. 3 m
Measure Direction: upcoming, descending, of both (auto select)
Picture camera:
Modell JACKNAU Recording camera ROBOT 36 DET Motorrecorder
Exposure Time fixed 1/500 s fixed 1/750 s
Lens Nikor 1:2/85 mm Schneider 1:3,8/75 mm
Photonegative size 24 x 36 mm 24 x 35 mm
Picture Speed max. 2 Aufn./s max. 2 Aufn./s
Angle between optical axle and driving direction:

16 build into car
19 on tripod

Flash: MB-2E build into car
MB-2A on tripod
Flash energie: Basic: 85 Ws bzw. 170 Ws (readjustable)
Option: 170 Ws bzw. 340 Ws (readjustable)
Recharge time: bei 85 Ws: 0,8 s
bei 170 Ws: 1,5 s
bei 340 Ws: 3,0 s

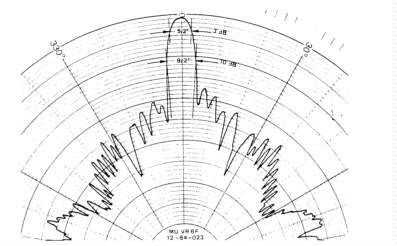

Richtcharakteristik der Antenne
Horizontal Plane VR 6F

Registrierfoto
Picture from the 6F

SPEZIAL - Multanova VR4F
