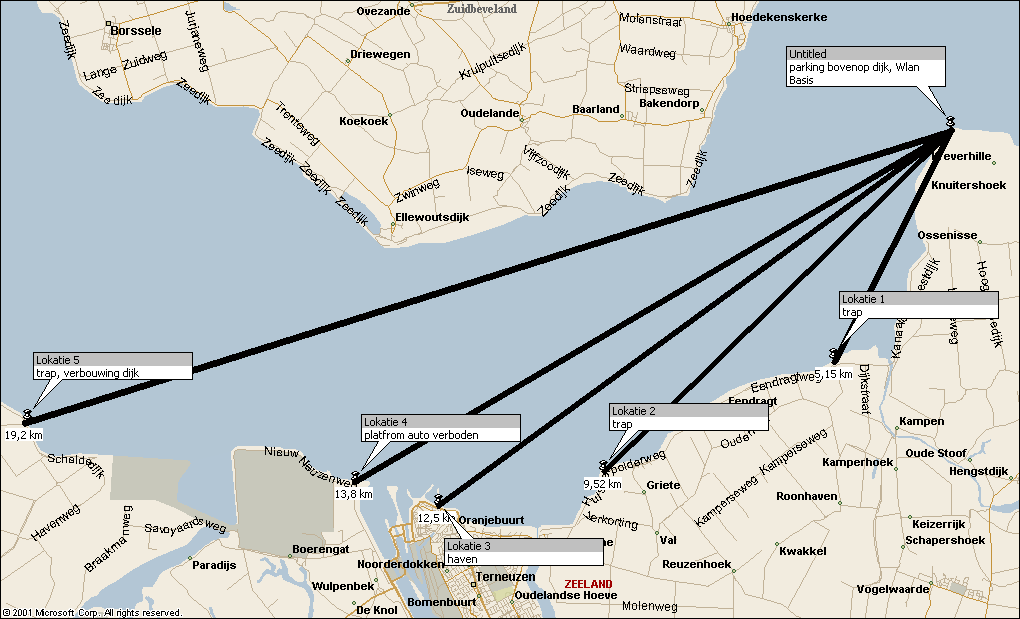

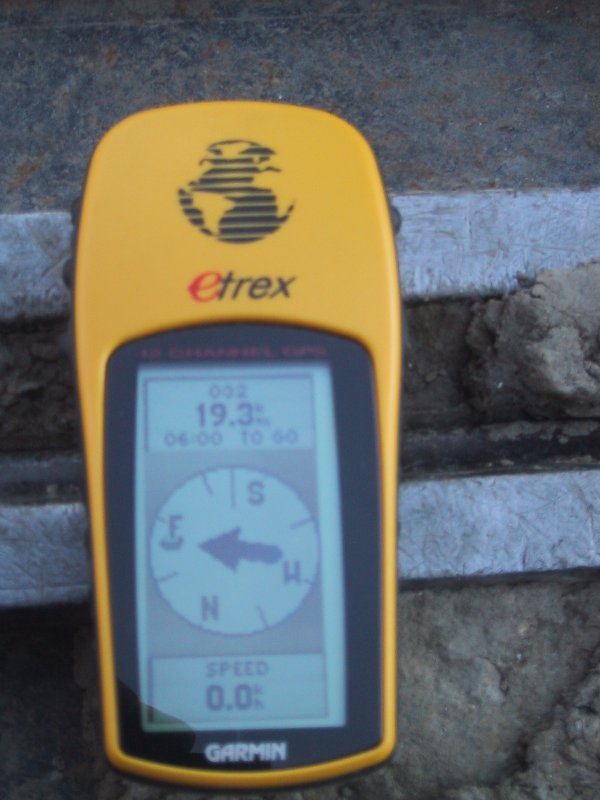

19.3 Km Wlan long distance test 10/05/2003



RESULT: At location 4 with antenna standard on car (Diamond MG-200) SNR : 11

                At location 5 (see client pictures) with parabolic antenna SNR            : 24

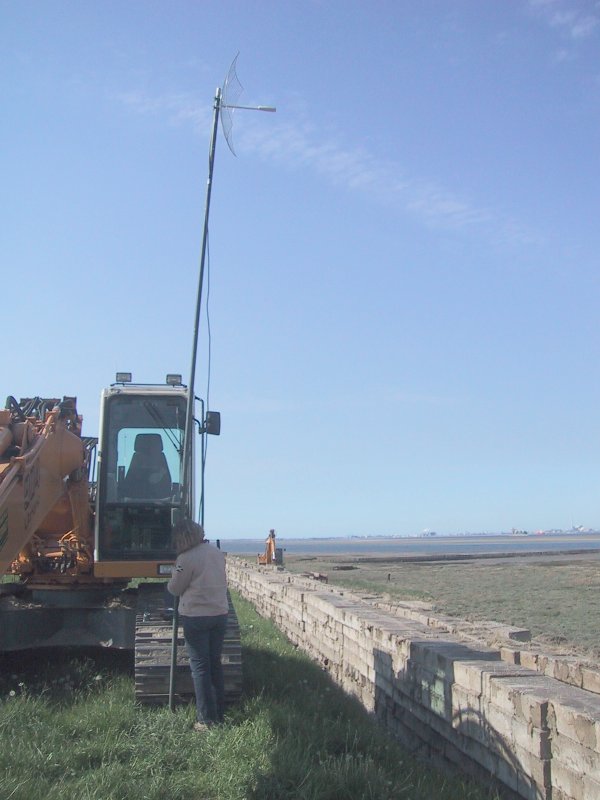

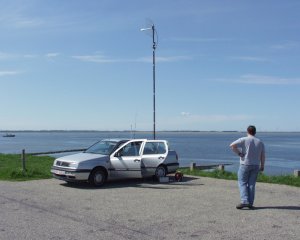

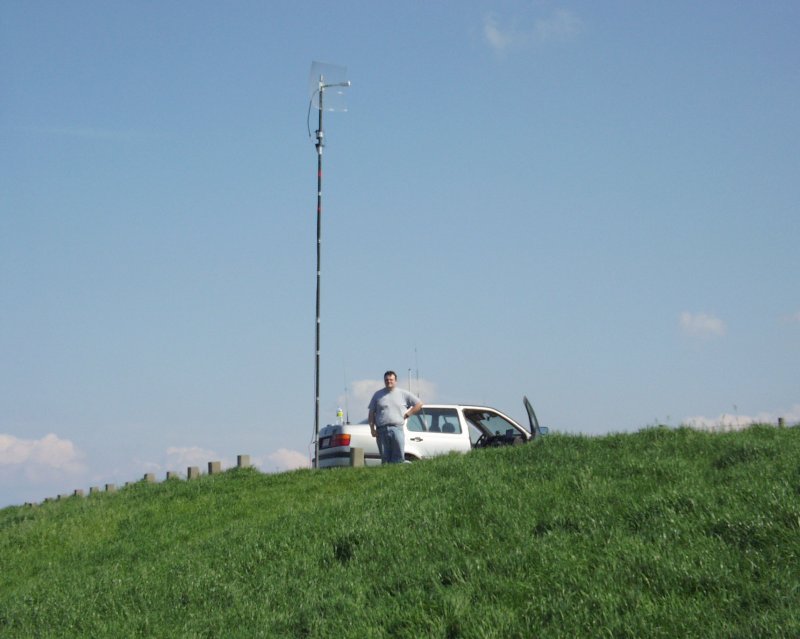

Pictures of the AP site:

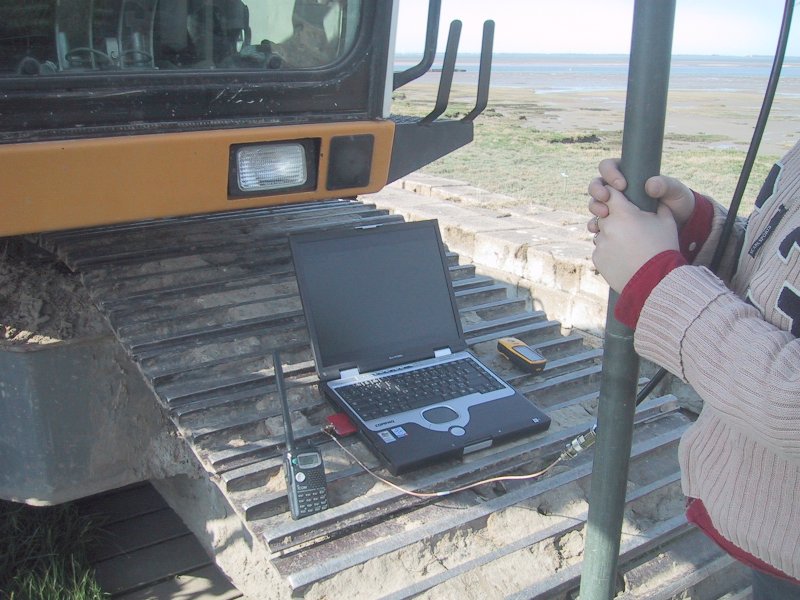

TX was 60 mW SMC 2455 AP with mcx antenna connection

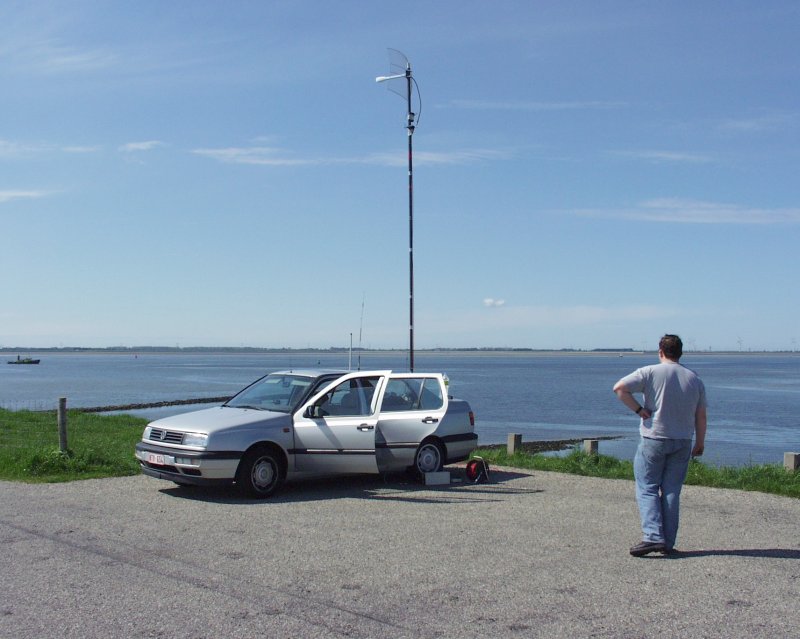

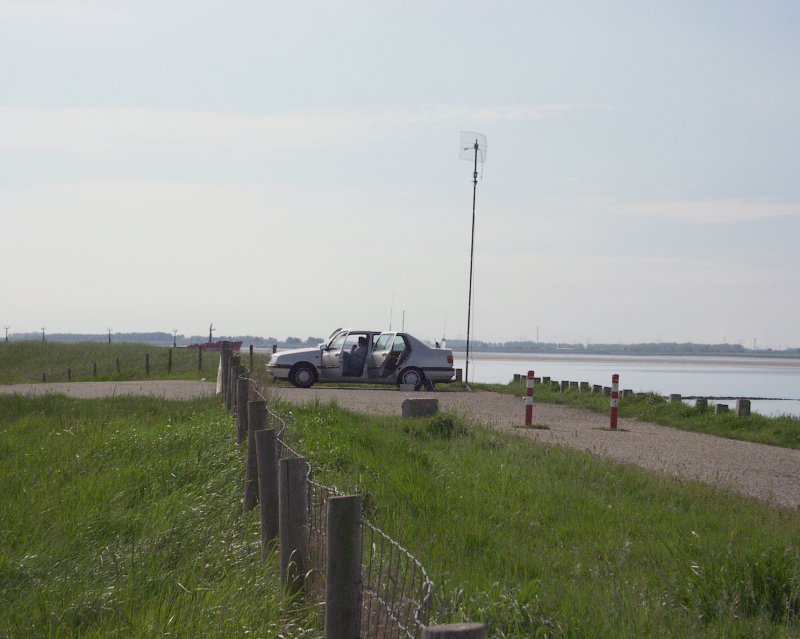

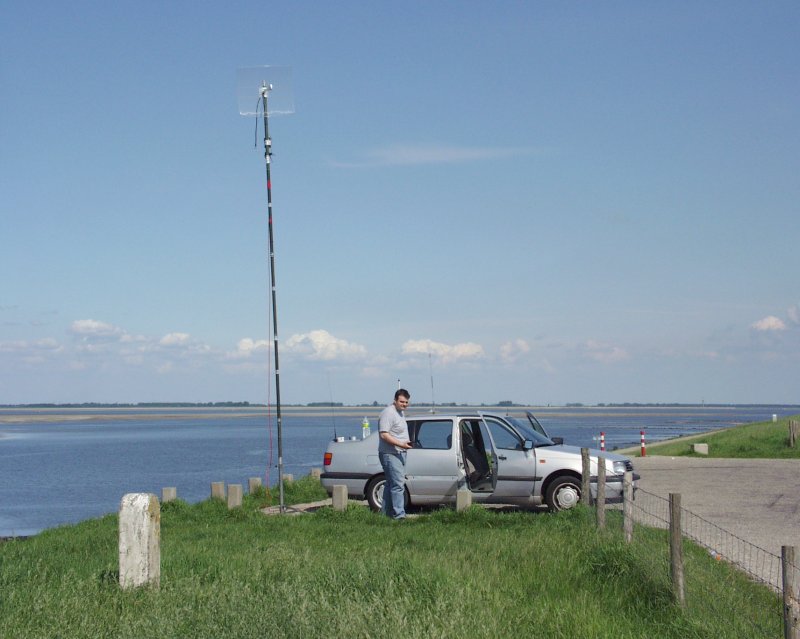

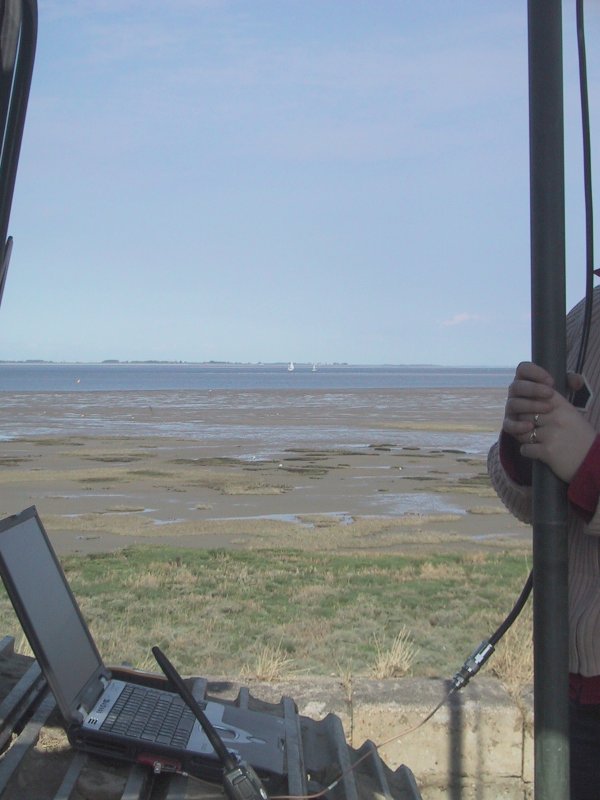

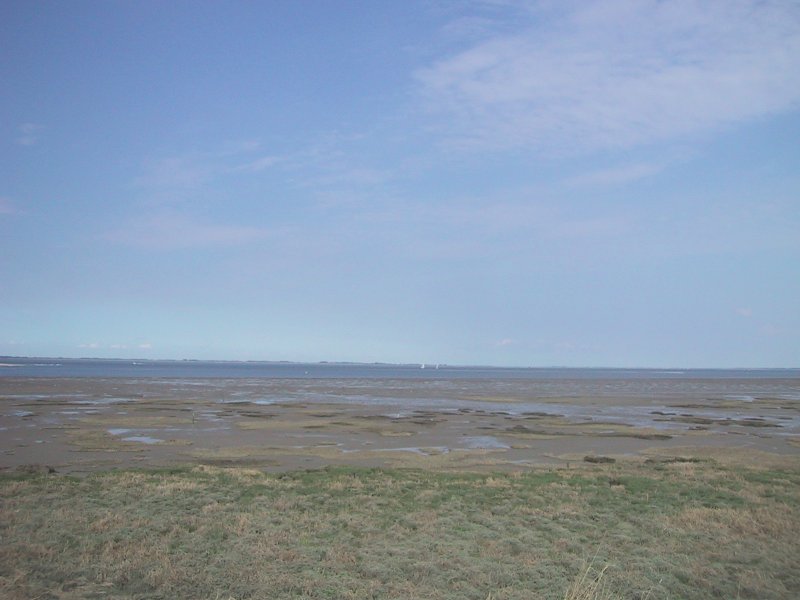

Pictures of the client site:

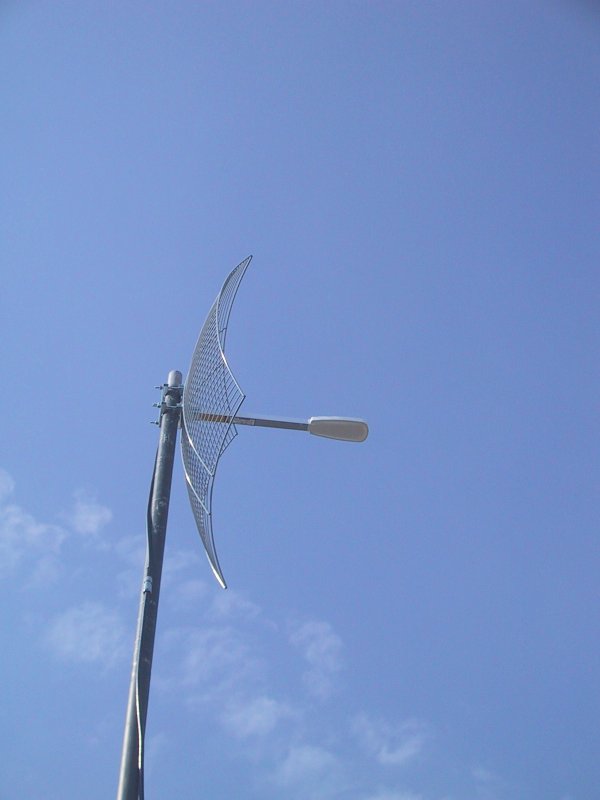

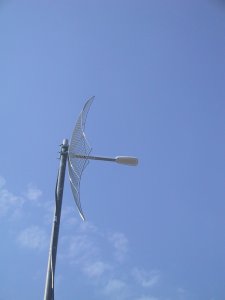

Elsa Airlancer MC-11 30mW, 4m ecoflex 10 coax, 24 Dbi parabolic antenna on 6m height.
