Wlan 42 Km test 30/05/2003


Max SNR 19 db, average SNR 17.

TX was 60 mW SMC 2455 AP with mcx antenna connection and  24 dbi parabolic antenna.

RX was senao pcmcia card with mmcx pigtail and 24 dbi parabolic antenna.

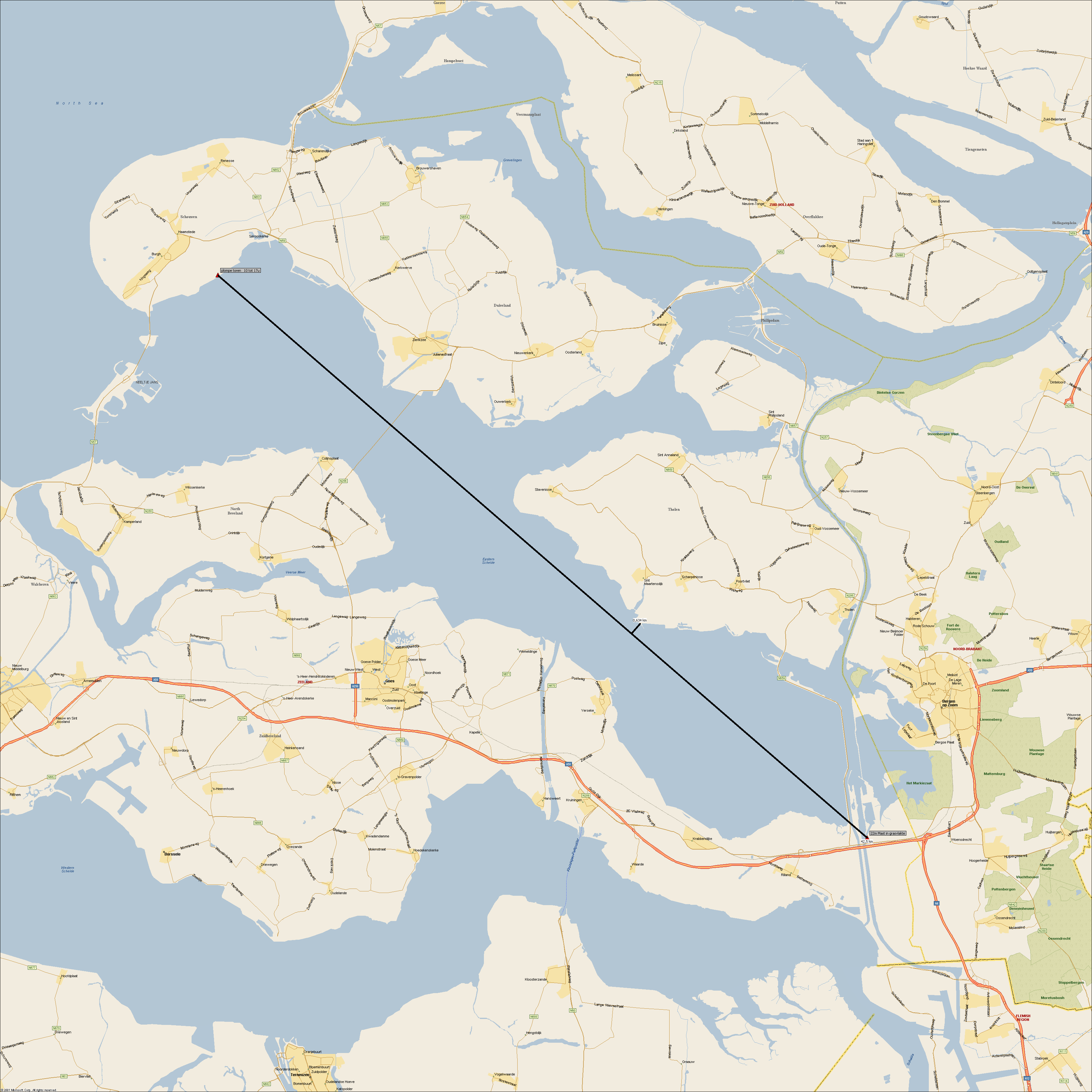

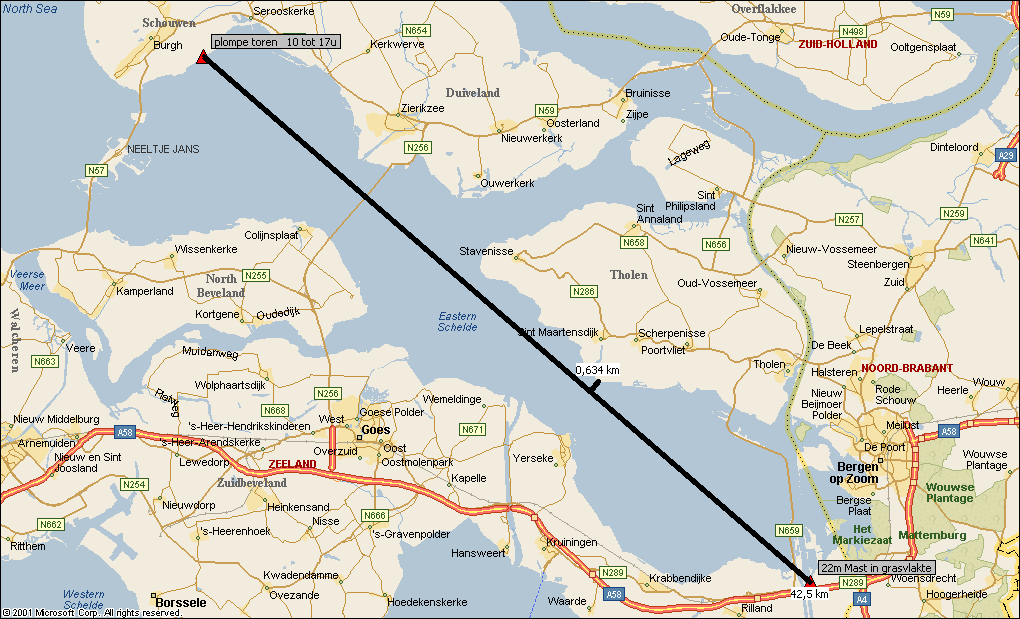

Klik on map for details.

MS Mappoint 2002 format map (.ptm)

RF Calculator (Excell)

Troposcatter Radio Links (Excell)

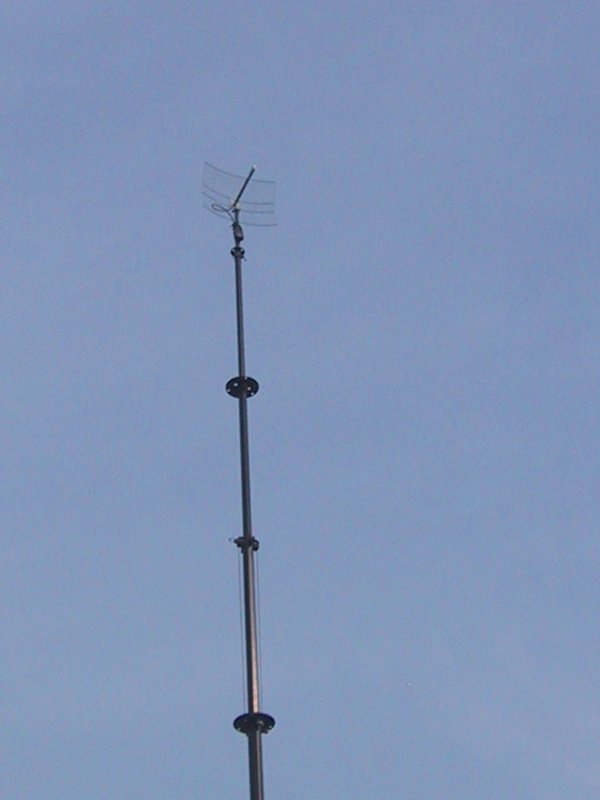

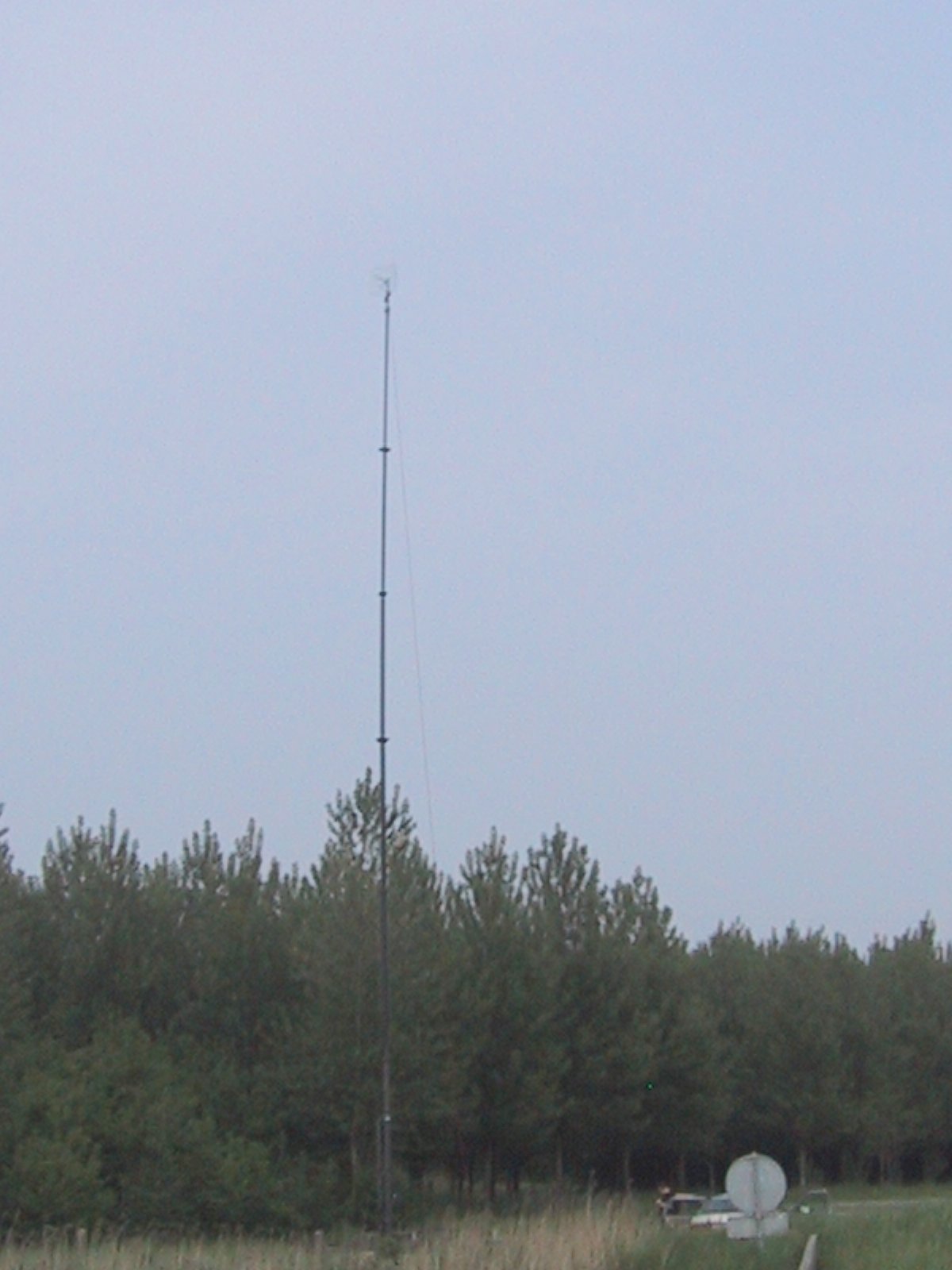

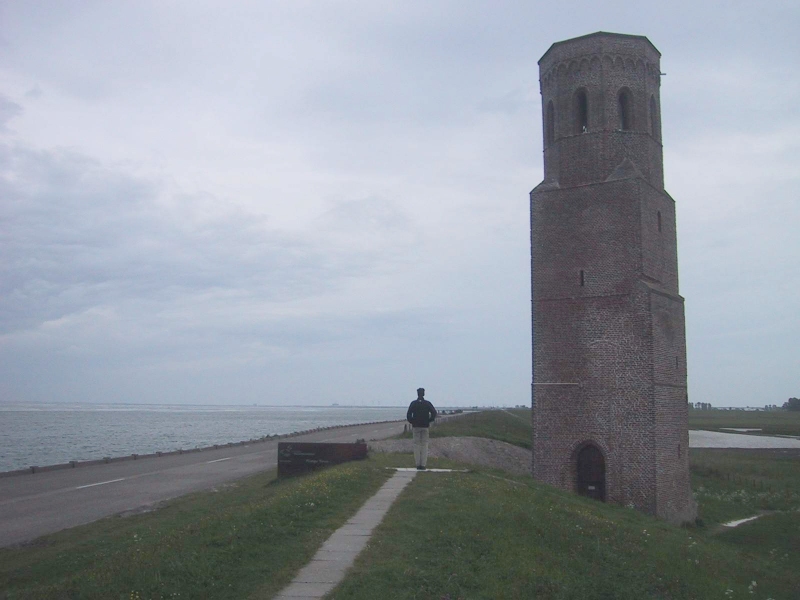

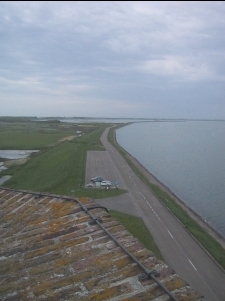

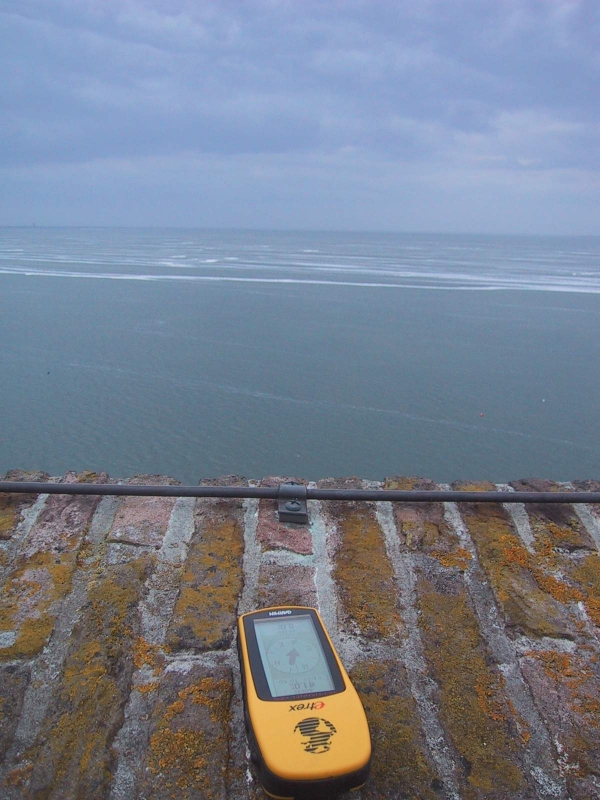

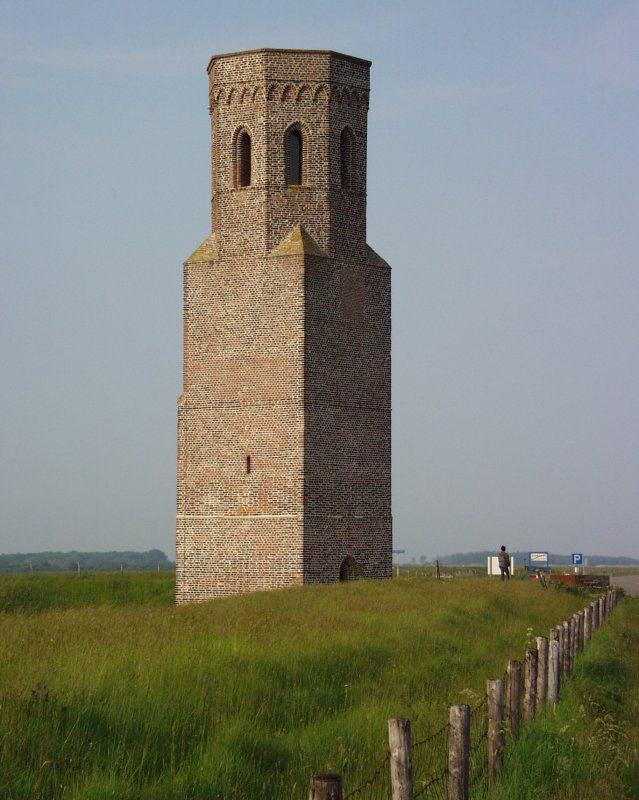

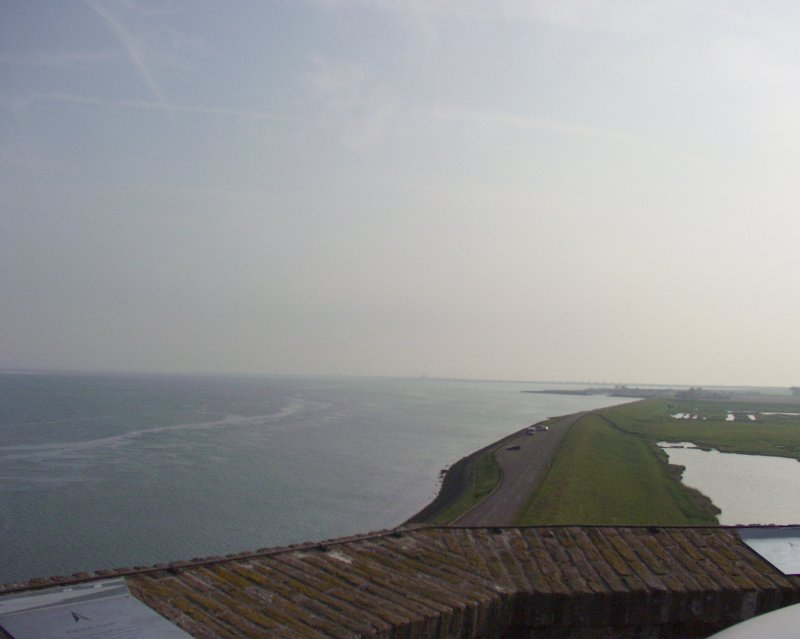

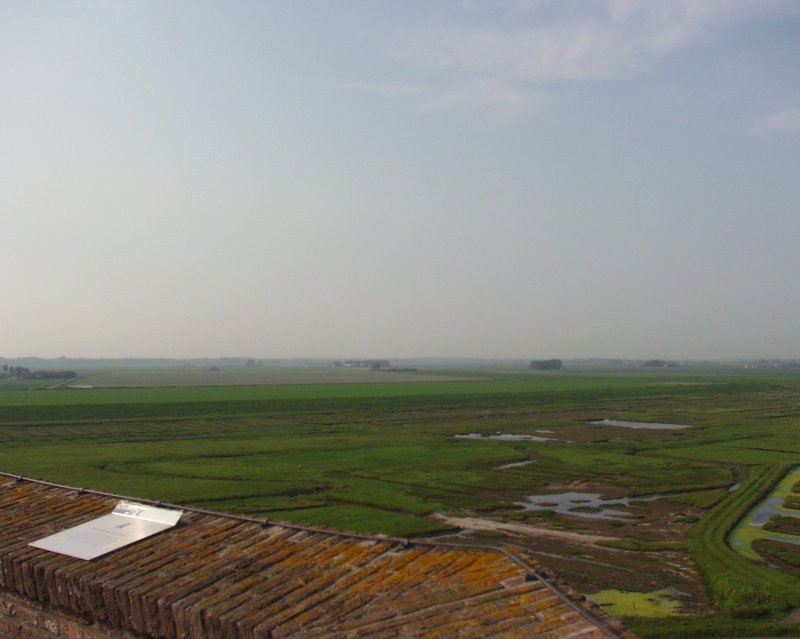

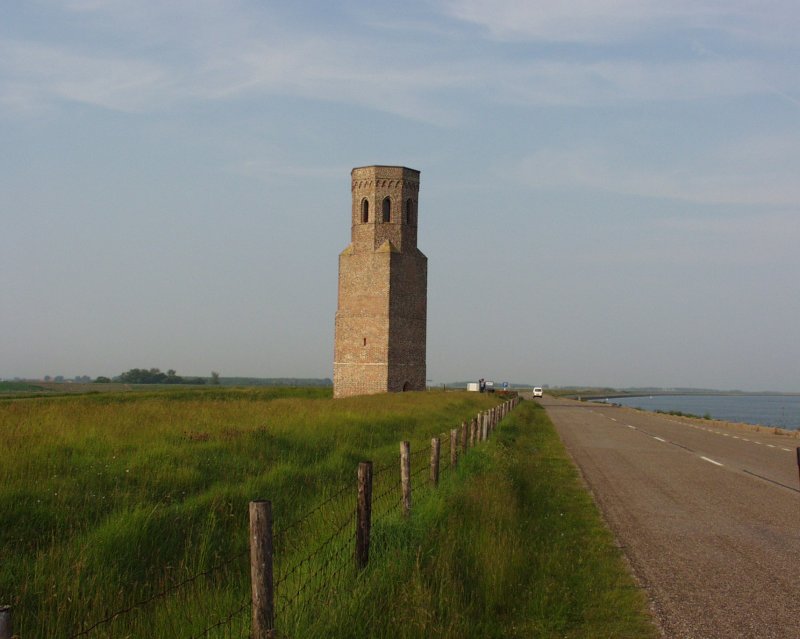

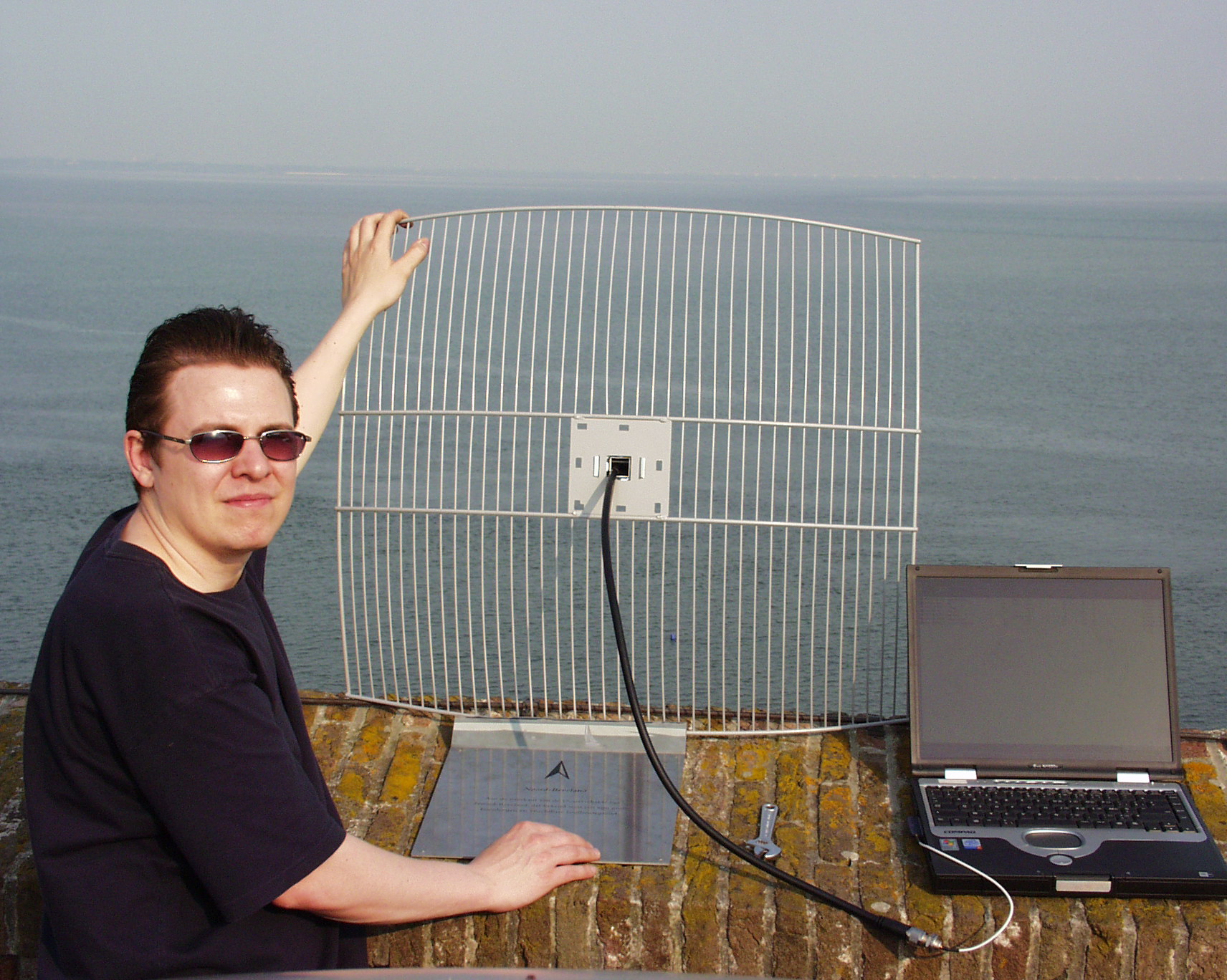

PICTURES OF TX SITE (Right on map):

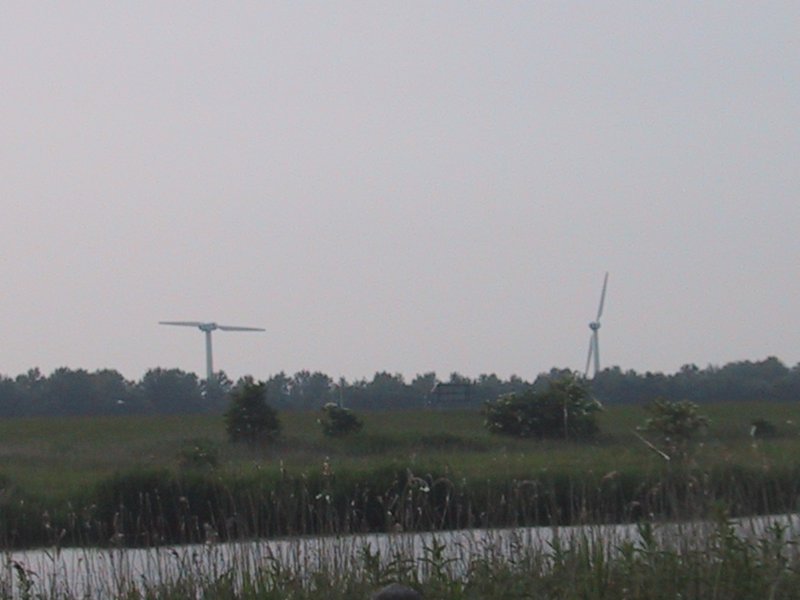

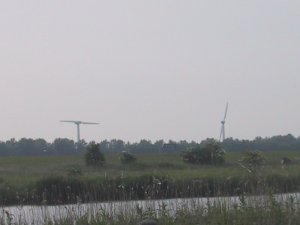

                                        Voor de ontvanger moeten we tussen deze 2 windtubines mikken....

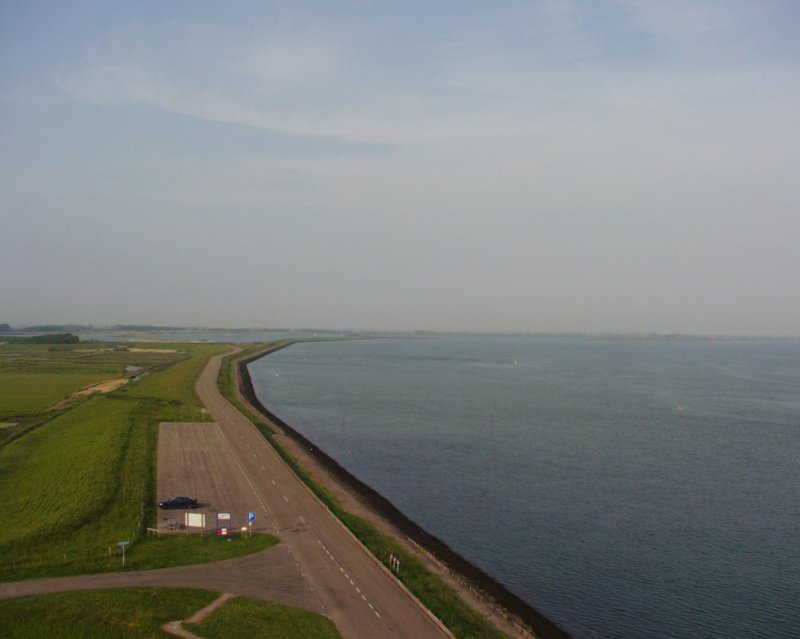

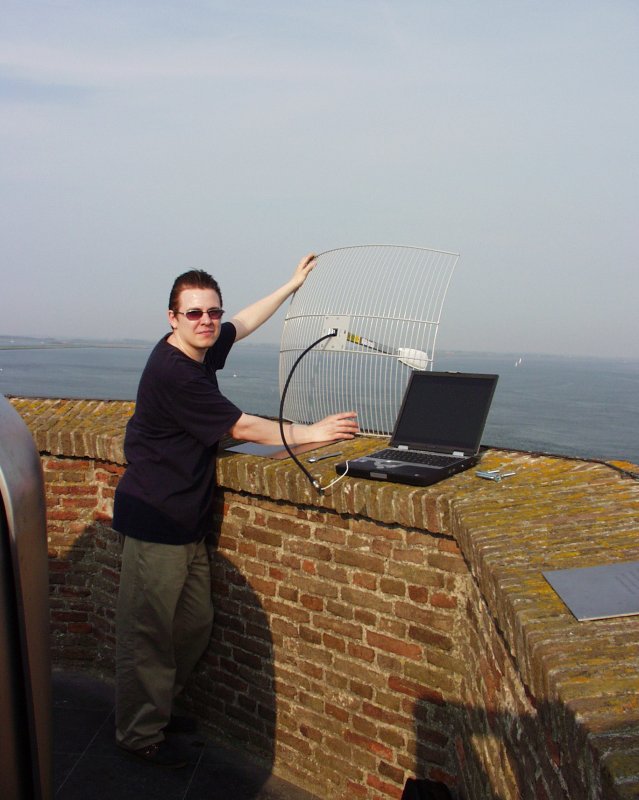

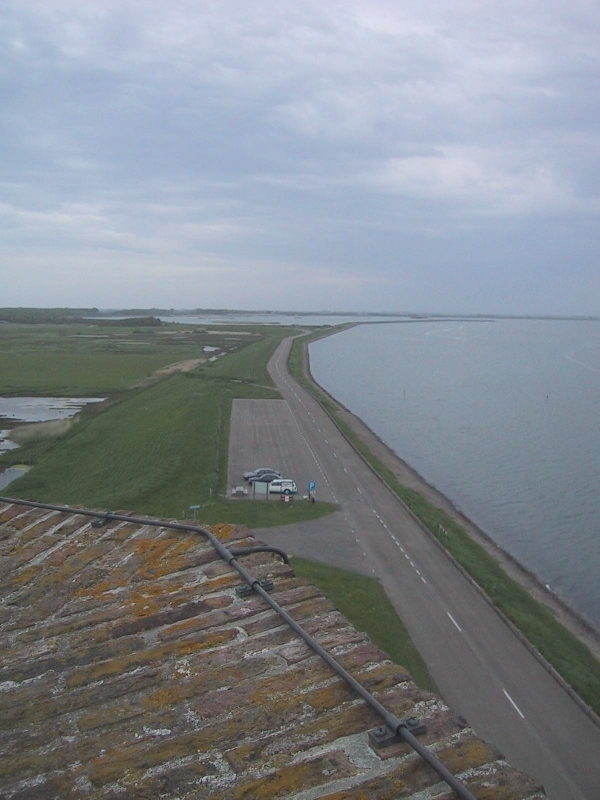

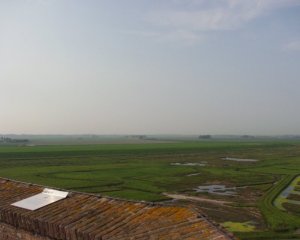

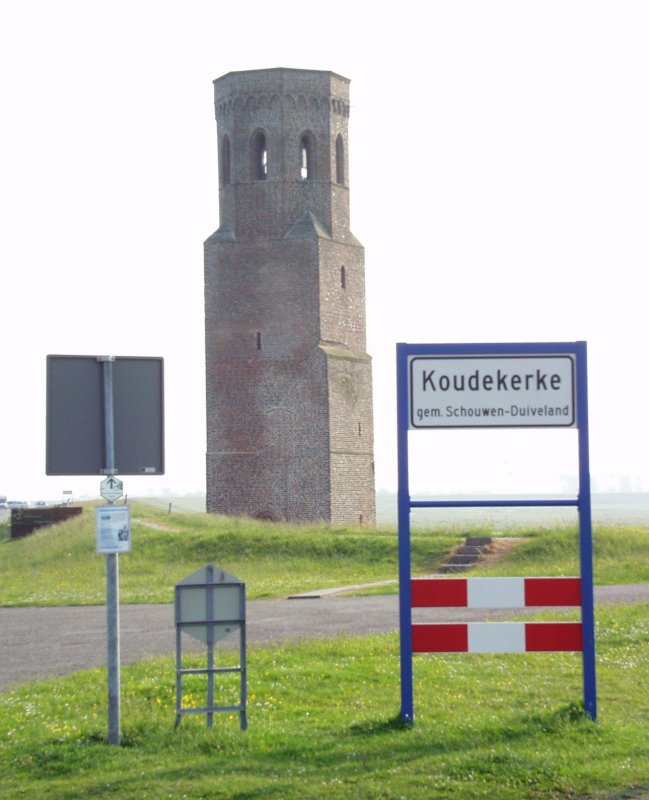

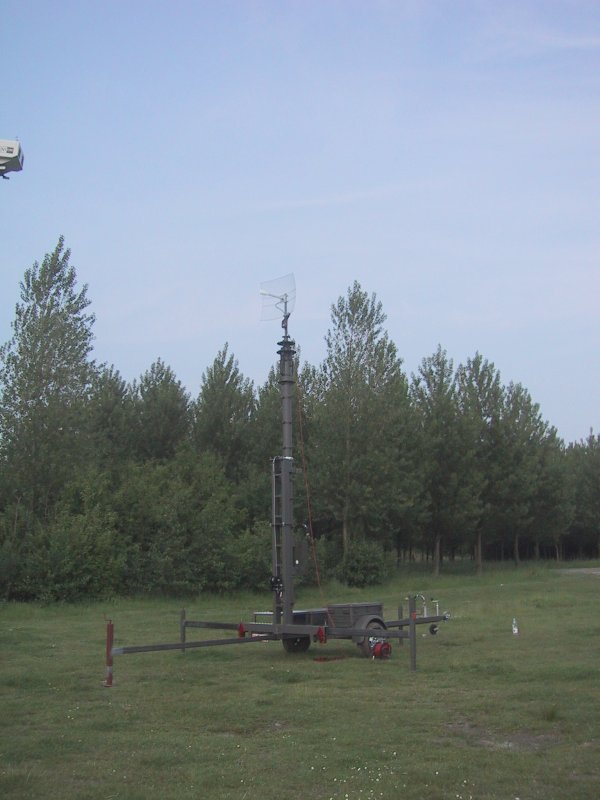

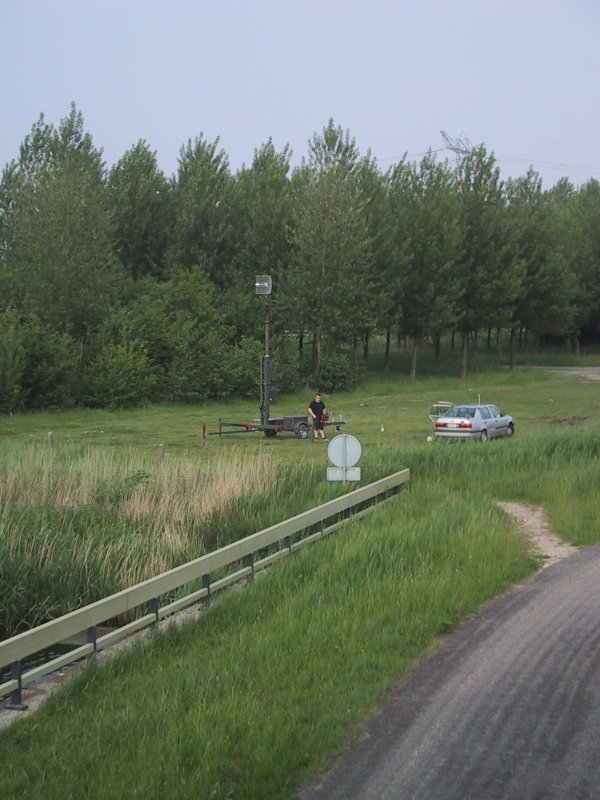

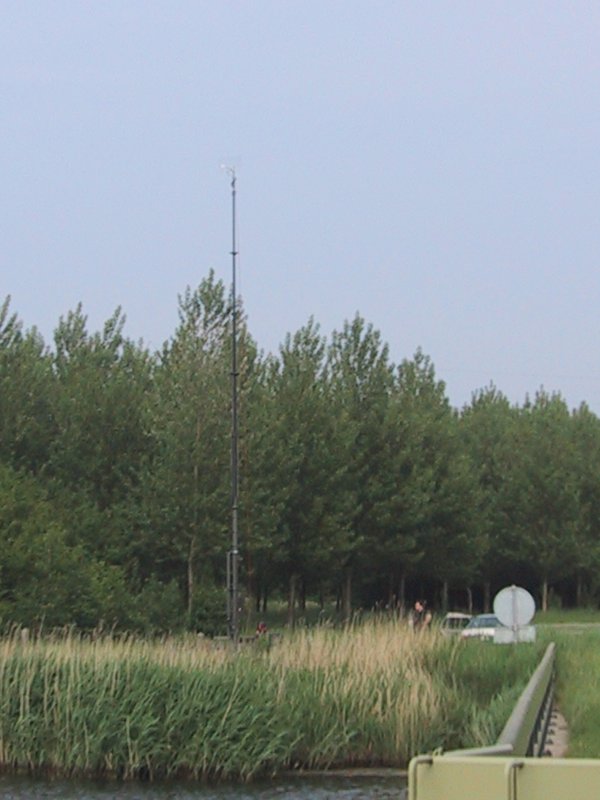

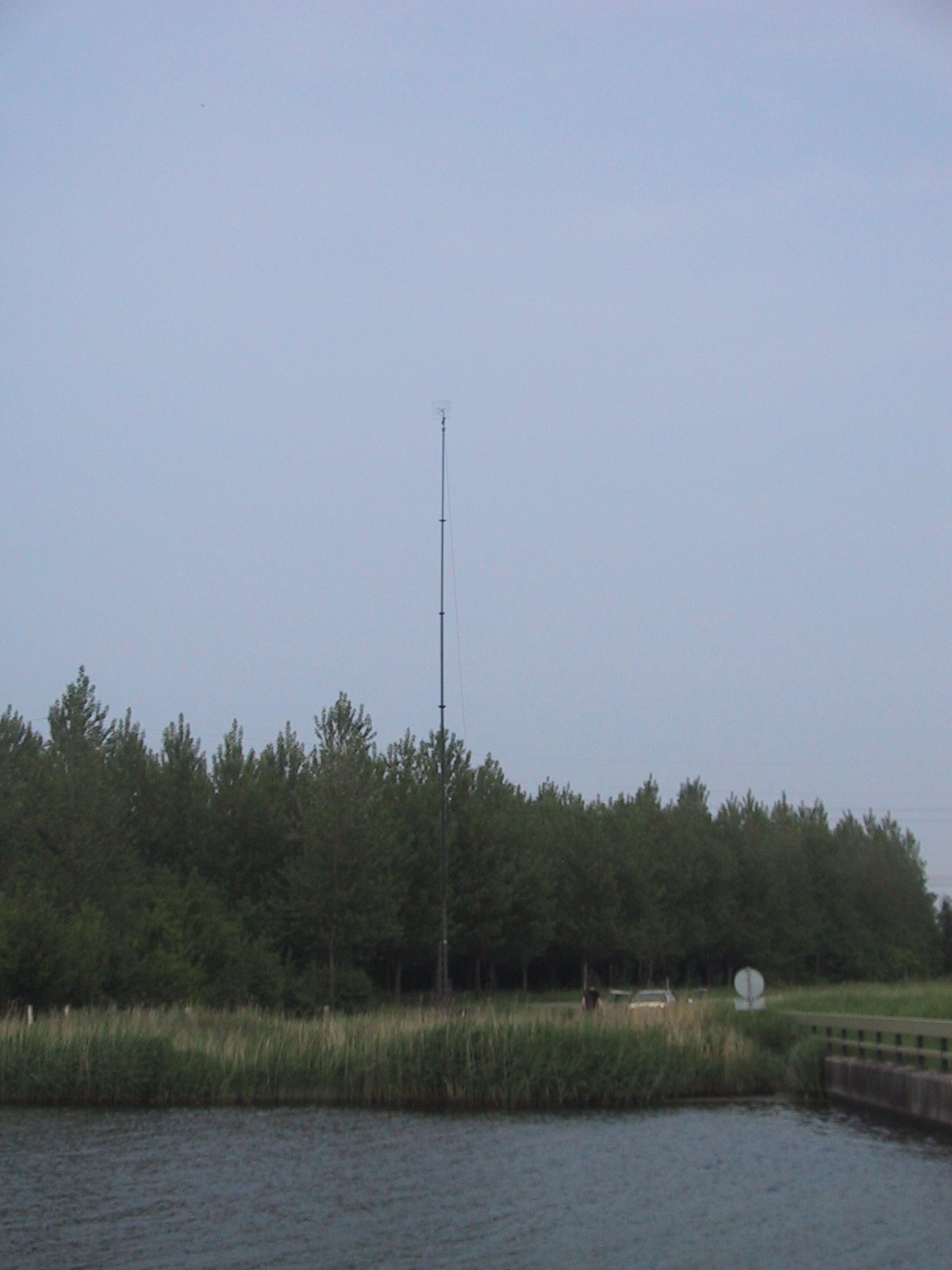

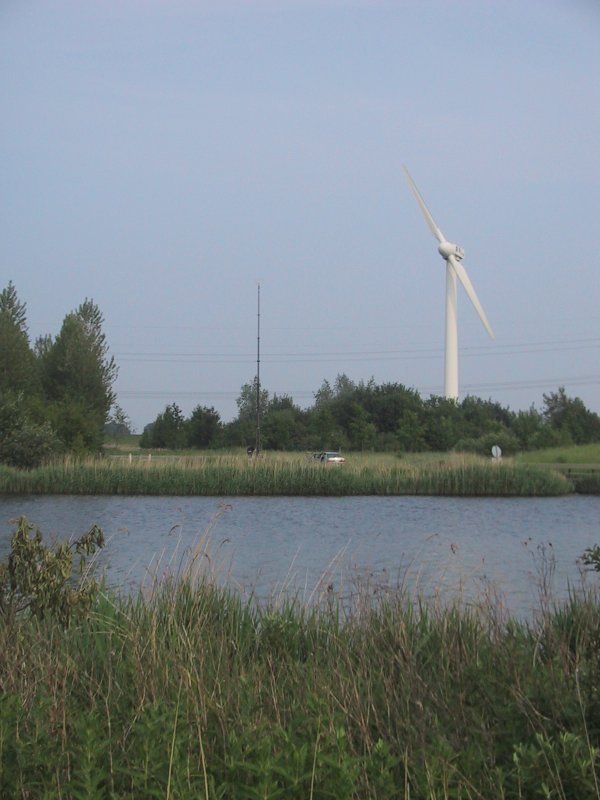

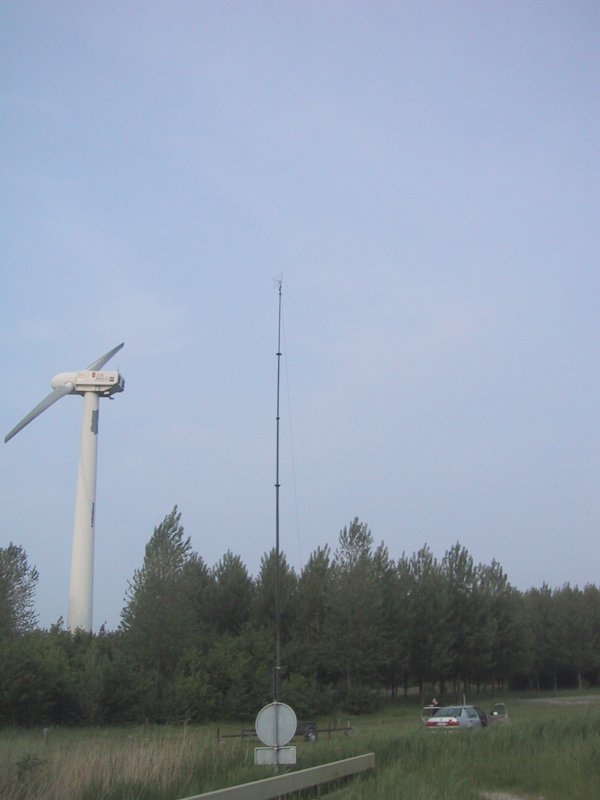

PICTURES OF RX SITE (Left on map):
